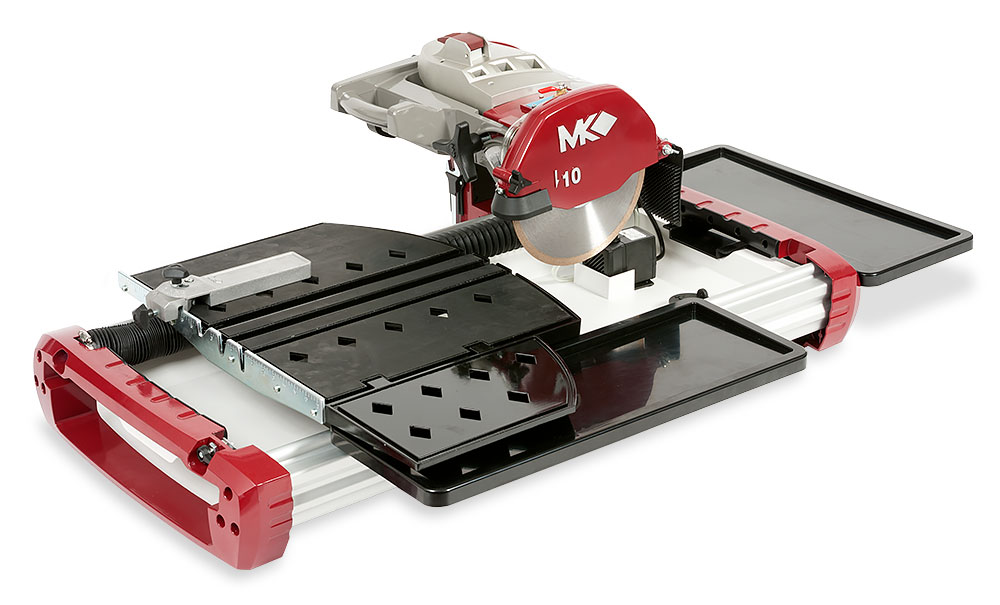

TX-4 Tile Saw

The TX-4™ features an innovative maintenance free guide bar system that eliminates the need for regular lubrication. The tilting head allows 22.5 and 45 degree miter cuts. The water distribution system provides a controllable, even flow to both sides of the blade. One-year limited warranty.

TX-4 Tile Saw

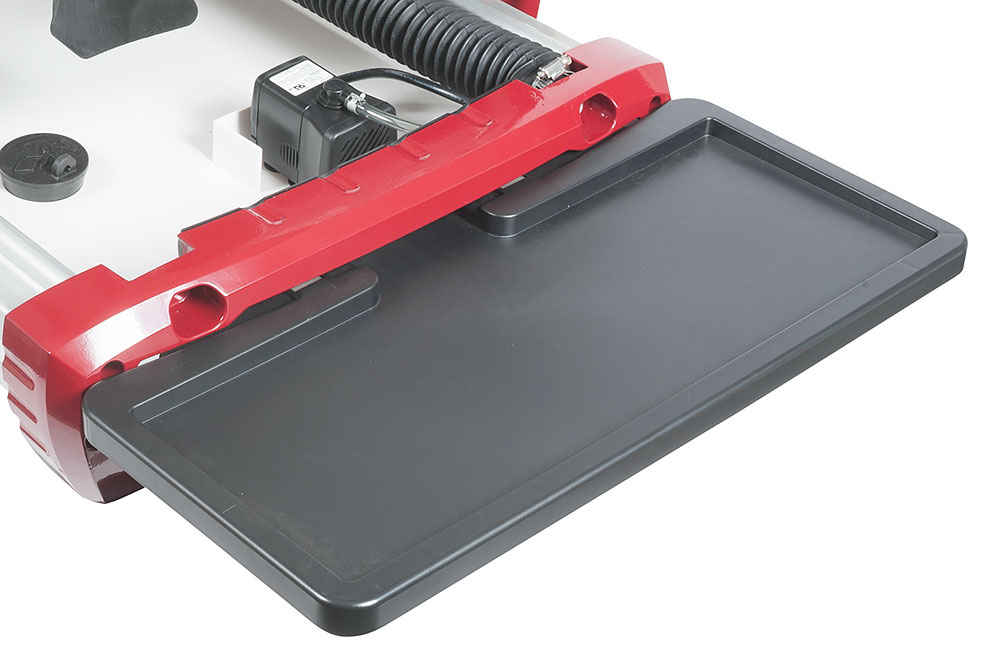

Detachable rear tray for water containment

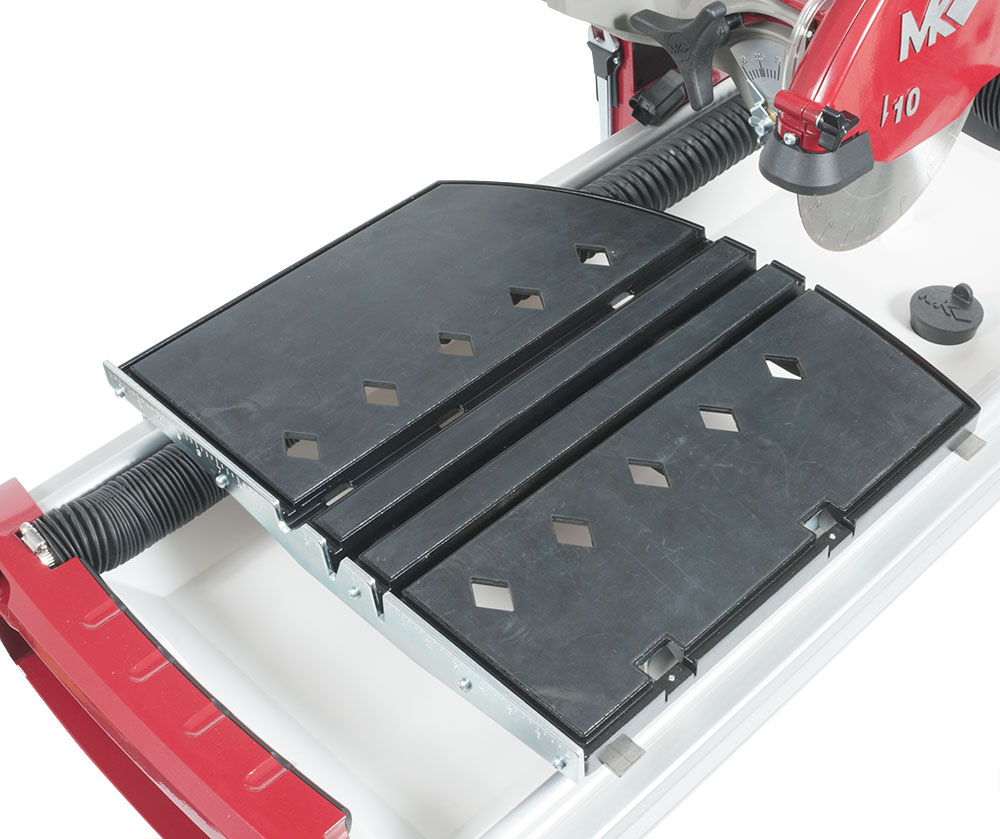

Large, aluminum cutting table with non-slip rubber surface

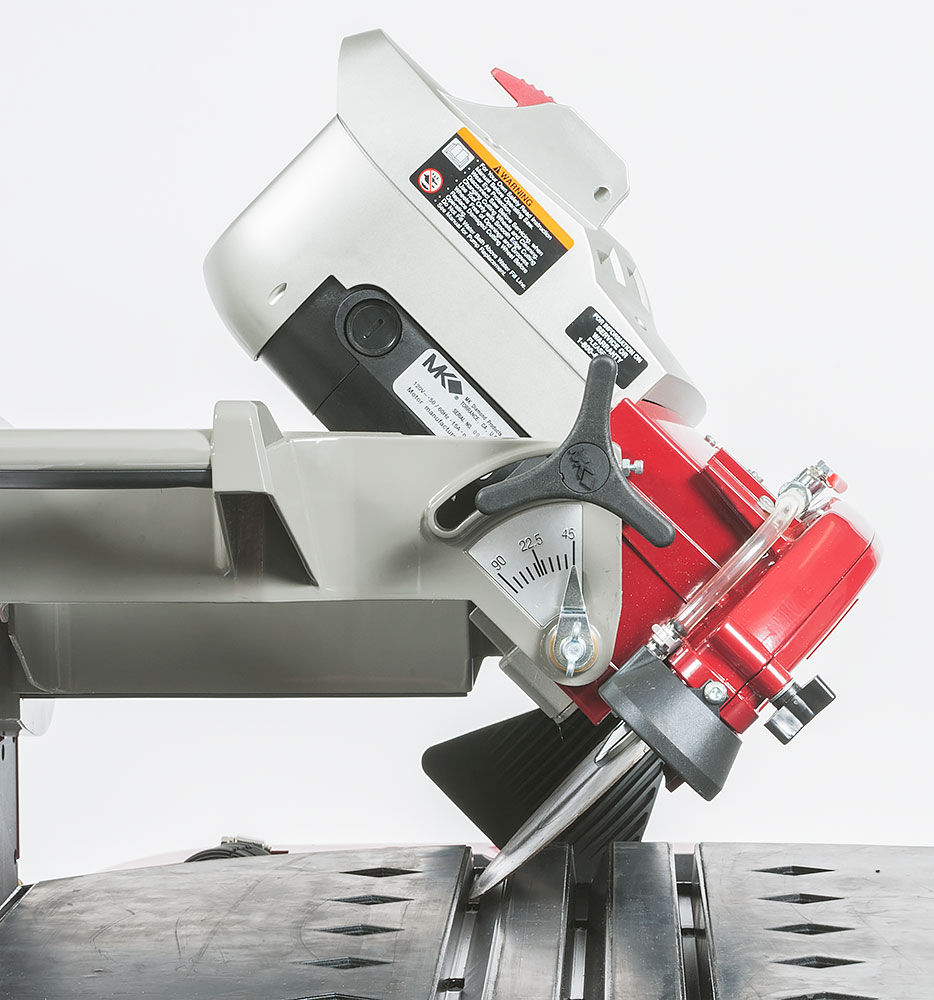

Adjustable cutting head for miter cuts

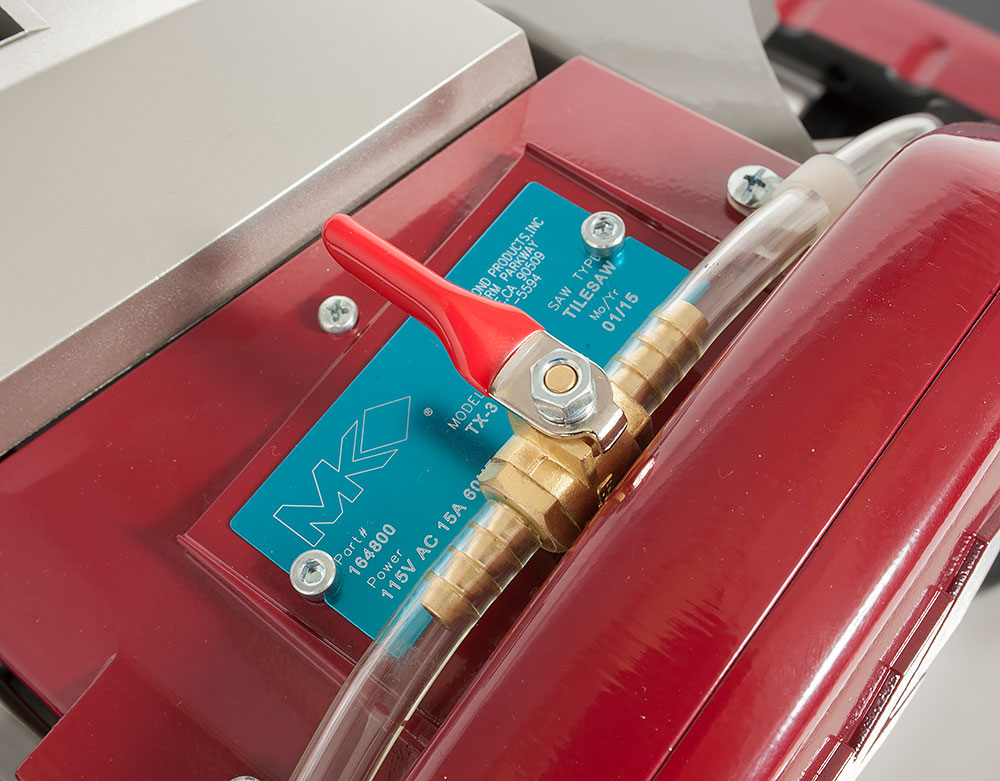

Water control valve
Water distribution system provides a controllable, even flow to both sides of the blade

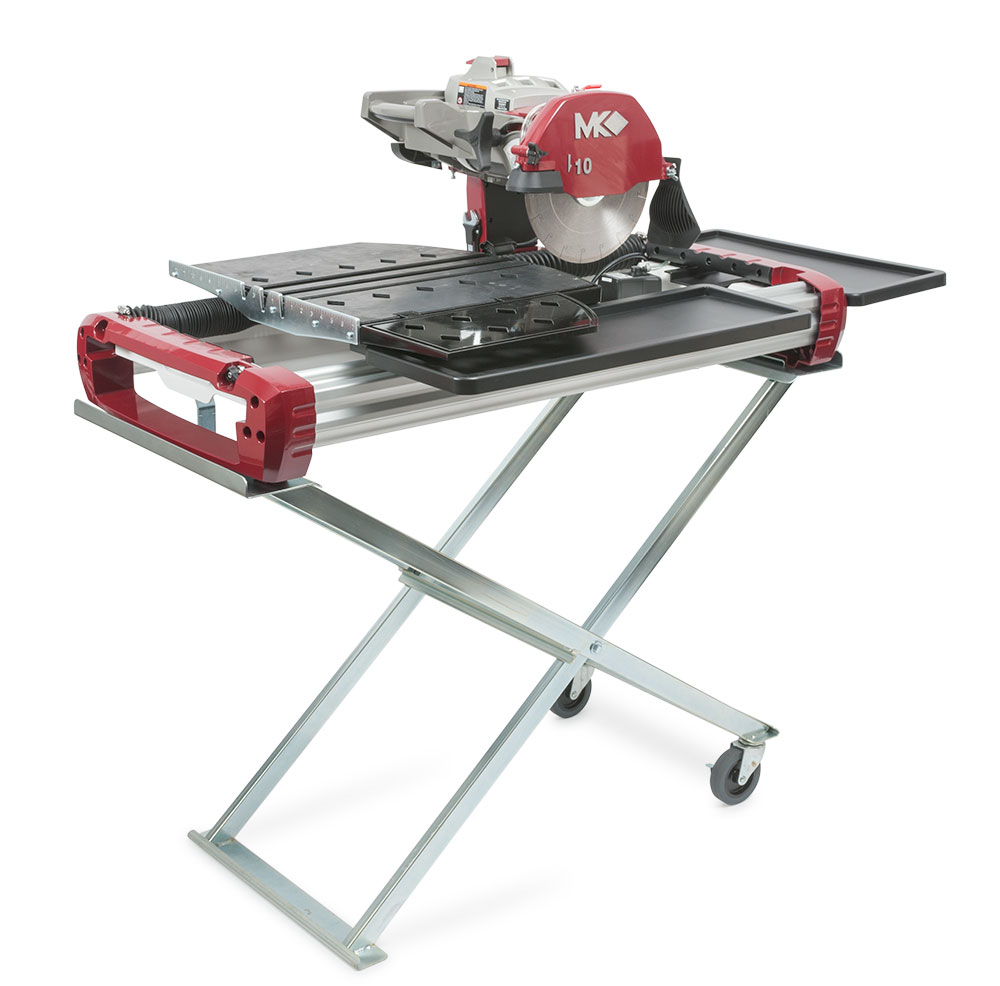

Optional folding saw stand with casters
  • Large, aluminum cutting table with non-slip rubber surface
  • Built-in fully adjustable miter system for precise 22.5º and 45º angle cuts
  • Water distribution system provides a controllable, even flow to both sides of the blade
  • Variable height cutting head allows for plunge cutting
  • Maintenance free guide bar system eliminates the need for regular lubrication
  • Hinged blade guard for easy blade changes and maintenance inspection
  • Detachable side water containment tray slides with the table
  • Detachable rear tray for water containment
  • Air Flow Module protects the motor from spray during operation
  • The side extension table allows greater support of larger materials during cutting
  • Table lock makes for easy transportation
  • 10" wet cutting continuous rim blade included
  • One-year limited warranty
TX-4 171231
Voltage 120V
Horse Power 1-3/4 hp
Amps 15
Motor RPM 3,500
Blade Capacity 10" (254mm)
Arbor Size 1" (25mm)
Depth of Cut 3-1/2" (89mm)
Depth of Cut at 45° 2-3/8" (60mm)
Length of Cut 24" (610mm)
Diagonally Cuts 18" Tile (457mm)
Weight 85 lbs. (39kg)
LxWxH 44" x 25" x 20"
LxWxH (mm) 1118 x 635 x 508
Shipping Method UPS / Fed-Ex
Included Accessories
10" Diamond Blade
TX-10 Diamond Blade
Rip Guide
Rip Guide
Side Table
Side Table
Side Water Table
Side Water Table
Rear Water Table
Rear Water Table
Optional Accessories
