MK-480RSL Supreme Grade Silent Core Blades
MK-480RSL Blade

For cutting refractory material in the medium hardness range such as Mulite-Silica-Soft Basic. Specially formulated bond resists glazing of the diamond segments in even the hardest of materials and ensure fast, free cutting. Additional blade diameters and special arbors available upon request. Stock arbors can be bushed to smaller sizes; please specify at time of order.

Diameter Width Arbor Part #
12" (305mm) .125" 1" 159298
14" (356mm) .125" 1" 158895
16" (406mm) .125" 1" 159299
18" (457mm) .140" 1" 159300
20" (508mm) .140" 1" 159099
Segment Height 8mm

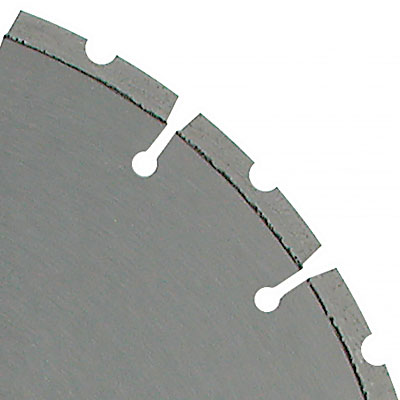

MK-480RSL Rim Detail
