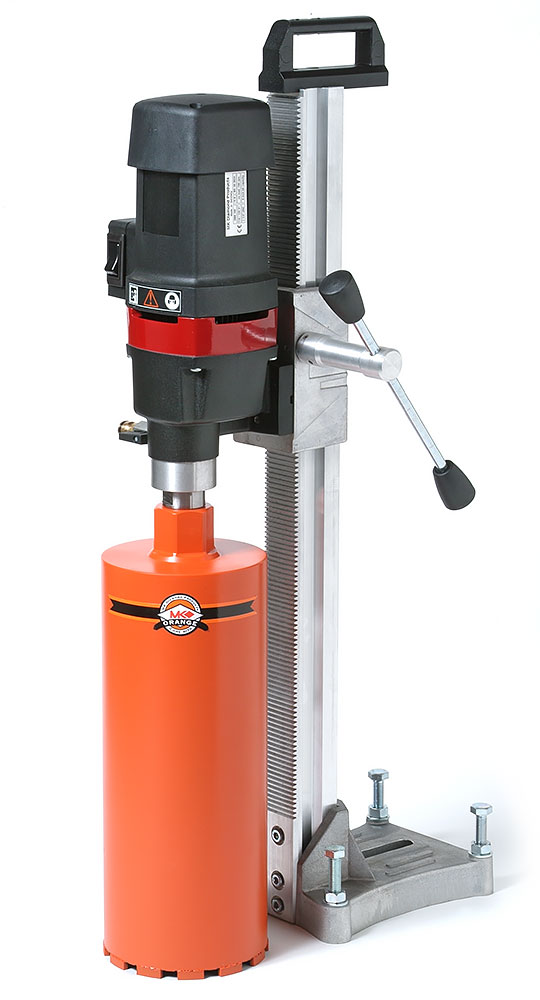

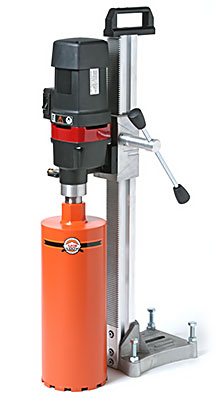

Manta® IV Core Drill Rig

A Light weight and portable core drill rig for For wet coring of concrete, stone and masonry.

Manta® IV Features:

  • For wet cutting of concrete, stone and masonry
  • 6" maximum bit capacity
  • Thermal overload protection
  • Anchor base for vertical and horizontal drilling
  • Four base leveling screws for precise drill alignment
  • Integrated water feed with flow valve and quick disconnect
  • Single lever "slip-through" feed handle
Part # 162675
Motor 120V / 60Hz
Amps 18
Watts 2000
No Load Speed 700 RPM
Motor Spindle 1-1/4"-7 UNC
Drilling Capacity 6" (152mm)
Carriage Travel 21" (533mm)
LxWxH (inches) 15" x 9-1/2" x 34"
LxWxH (mm) 831 x 241 x 864
Weight 34 lbs. (15.4 kg.)

Warning: This equipment contains chemicals know to the State of California to cause cancer and birth defects or other reproductive harm. These chemicals are contained in various components. fluids and paint including but not limited to fuel, oil, electric motors and batteries. In addition, gasoline/diesel powered equipment emits engine exhaust and fumes, and when serviced, cleaned or maintained generate used oil, waste fluids, fumes, grease, grime and particulates from the component wear and silica dust which contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

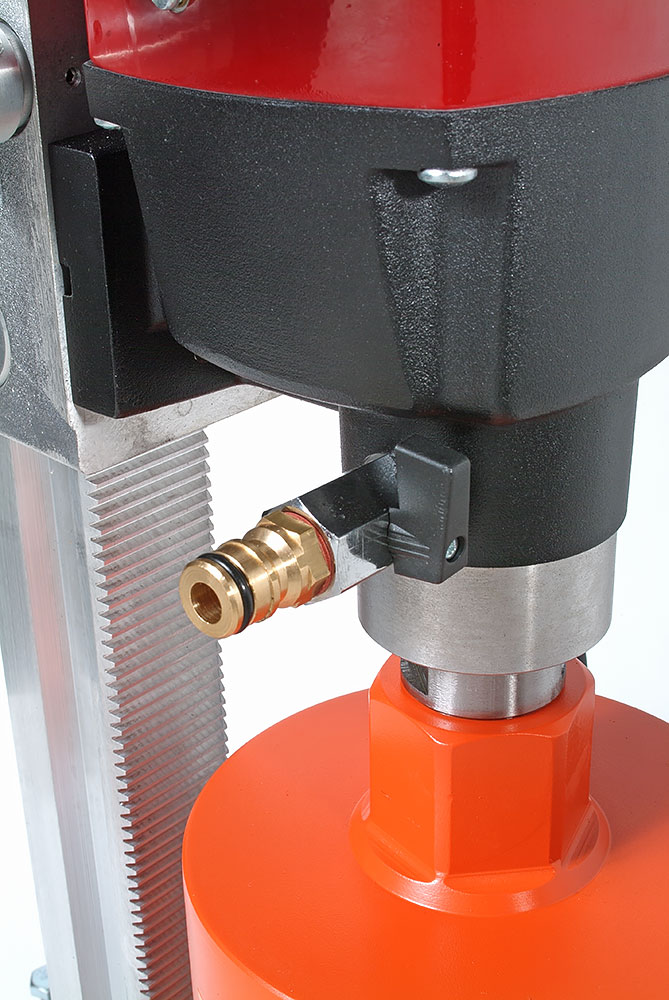

Quick-release water feed valve
