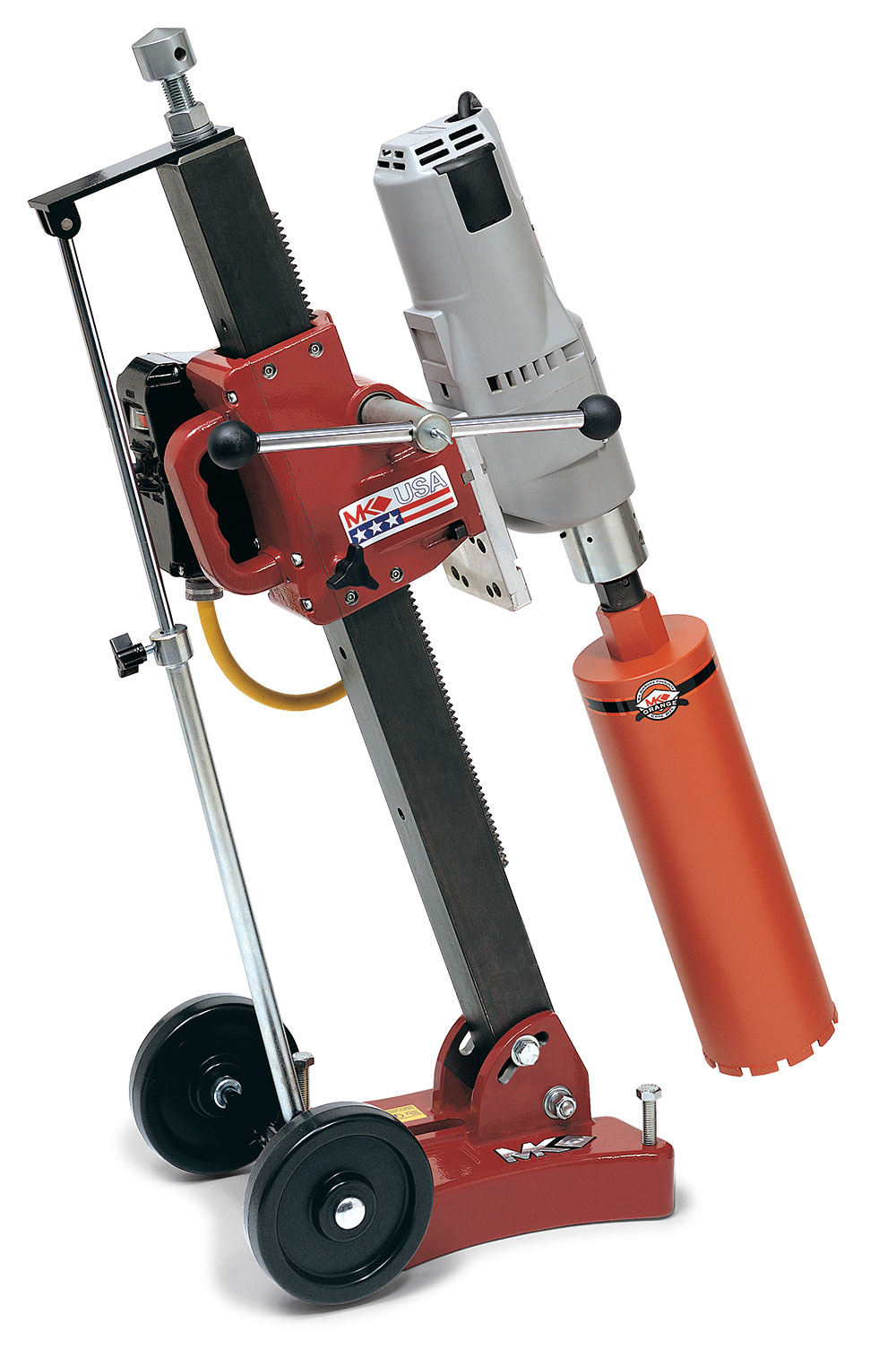

Manta® III Anchor Tilt Base Drill Stand

Manta III Core Drills feature a precision rack-&-pinion carriage with maintenance-free, double-sealed bearings and a 2-1/2" square steel column with ceiling jack. All Manta drill rigs are engineered for positive anchoring to allow for both vertical and horizontal drilling. The lightweight cast-aluminum base and built-in wheels make the Manta line easy to move and maneuver. The carriage assembly easily detaches from column for transport. Control box comes standard with amp meter and a conveniently located power switch.


Manta® III Features:

  • Precision rack-&-pinion carriage with maintenance-free double-sealed bearings
  • 2-1/2" steel column with ceiling jack
  • Lightweight cast-aluminum base with built-in wheels
  • Positive anchoring for vertical & horizontal drilling
  • Control box with amp meter
  • Two speed Milwaukee motor
  • Made in the USA
  • One-year limited warranty

MK-Manta® III with Anchor Tilt Base Drill Stand

Motor H.P. Amps RPM Part #
Milwaukee 4090 2.5 15A 375 - 750 158657
Milwaukee 4094 4.8 20A 450 - 900 158652
Milwaukee 4096 4.8 20A 450 - 900 158653
Milwaukee 4097-20 2.5 15A 500 - 1,000 158656
Drill Stand w/o motor & control box 158427

General Specifications
Motor 120V
Bit Capacity 1/2" to 14" (16" with motor spacer)
Bit Feed 27"
Motor Spindle 1-1/4"-7
Column 2-1/2" x 2-1/2" adjustable rack and pinion
Weight-Combo Base 109 lbs. (including pump)
Weight-Combo Tilt Base 114 lbs. (including pump)
Weight-Anchor Base 90 lbs.
Weight-Anchor Tilt Base 95 lbs.
Size LxWxH 19" x 24" x 46"
Size mm 480 x 610 x 1,170
Shipping Method Truck

Motor Amps Motor
Protection
RPM Range
Low/High
Suggested Diameters in
Medium Aggregate
4004 20A Clutch 300 - 600 Low - 7" - 14" High - 4" - 7"
4090 15A Shear Pin 375 - 750 Low - 5" -8" High - 2-1/2" - 5"
4094 20A Shear Pin 450 - 900 Low - 6" - 10" High - 2-1/2" - 5"
4096 20A Clutch 450 - 900 Low - 6" - 10" High - 2" - 6"
4097-20 15A Clutch 500 - 1,000 Low - 3" - 5" High - 1-3/4" - 3"
