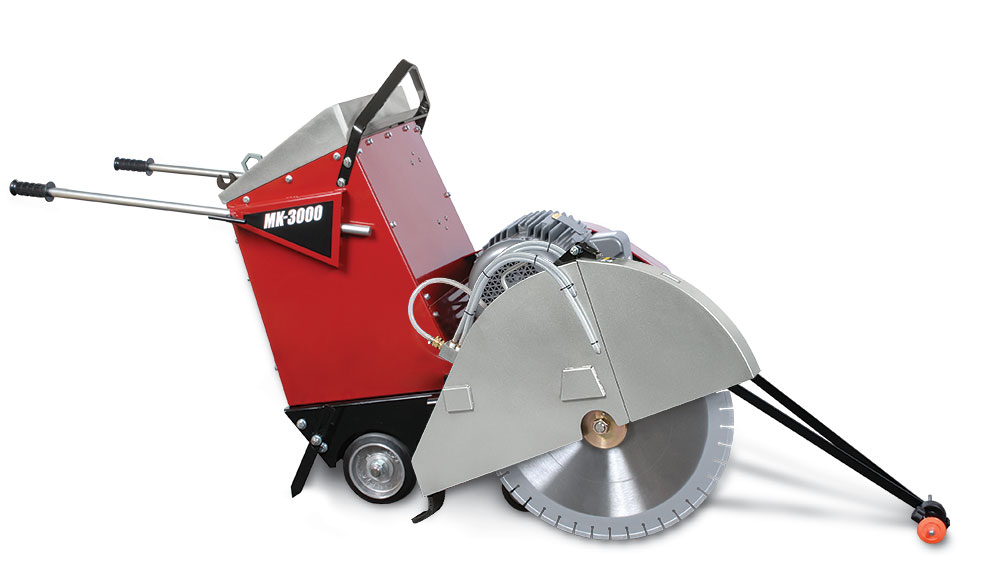

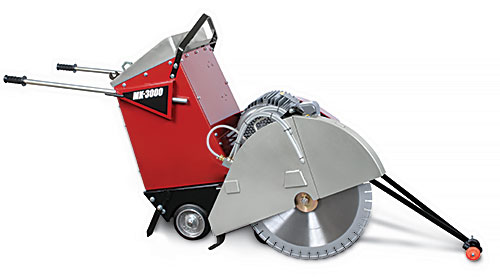

MK-3000 Series Electric Saws
|
The MK-3000 Electric Saw provides a solution for those environments and situations where electric power is the right choice, whether for indoor use or simply operator preference. The saw utilizes a three-phase, 20 Hp, Baldor electric motor in 230V or 460V to match the user’s need. The saw features the same raise/lower system, self-propelled transmission and control set as other MK-3000s. An ammeter is provided to help monitor load when cutting. One-year limited warranty.
MK-3000 Electric Series Features:
- 1-7/16 blade shaft with heavy-duty pillow block bearings
- Quick release, auto-latching bayonet mount blade guard
- Three position adjustable solid steel handlebars
- Blade guard uses "ride on the blade" water tubes for superior water delivery and blade cooling
- Saw designed for left or right side mounting of blade and blade guard
- Rigid frame front pointer with high visibility guide wheel for accurate tracking
- Ergonomic FNR traverse control
- Transmission can be disengaged from axle to allow saw to be pushed manually
- Depth of cut indicator
- Blade guard has garden hose style connector for quick disconnecting
- Removable rear panel for easy service
- 7 rib powerband drive from engine to blade shaft
- Electric leadscrew for positive adjustment of cutting depth
- Wide front wheel base increases stability and allows ramp loading/unloading
- Eaton model 6 Hydrostatic transmission coupled to an MK trans-axle
| Model | MK-3020B | MK-3020B |
| Part# | 167428-20 | 167429-20 |
| Motor | Baldor 20 hp | Baldor 20 hp |
| Volts / Phase | 230V / 3 Phase | 460V / 3 Phase |
| Blade Capacity | 20" (508 mm) | 20" (508 mm) |
| Blade RPM | 2,580 | 2,580 |
| Depth of Cut | 7-1/2" (191 mm) | 7-1/2" (191 mm) |
| Model | MK-3026B | MK-3026B |
| Part# | 167428-26 | 167429-26 |
| Motor | Baldor 20 hp | Baldor 20 hp |
| Volts / Phase | 230V / 3Phase | 460V / 3 Phase |
| Blade Capacity | 26" (660 mm) | 26" (660 mm) |
| Blade RPM | 2,030 | 2,030 |
| Depth of Cut | 10-1/2" (267 mm) | 10-1/2" (267 mm) |
| Model | MK-3030B | MK-3030B |
| Part# | 167428-30 | 167429-30 |
| Motor | Baldor 20 hp | Baldor 20 hp |
| Volts / Phase | 230V / 3Phase | 460V / 3 Phase |
| Blade Capacity | 30" (762 mm) | 30" (762 mm) |
| Blade RPM | 1,680 | 1,680 |
| Depth of Cut | 12-1/2" (318 mm) | 12-1/2" (318 mm) |
| General Specifications | |
| Arbor | 1" with 3/8" Drive Pin |
| Travel Speed | 0-220 FPM Forward 0-100 FPM Reverse |
| L x W x H | 50" x 30-1/2" x 44" |
| Weight | 700 lbs. |

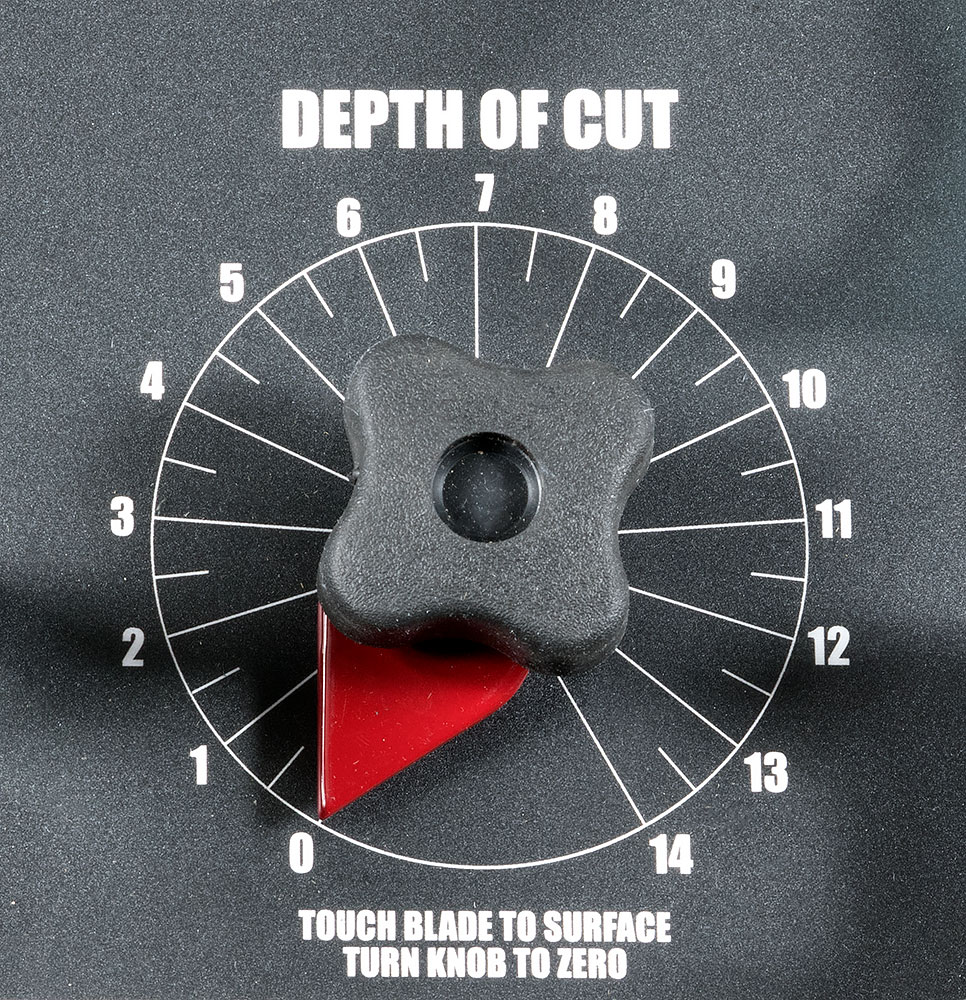

Electric leadscrew for effortless
positive adjustment of cutting
depth. Depth of cut indicator
positioned for easy access.

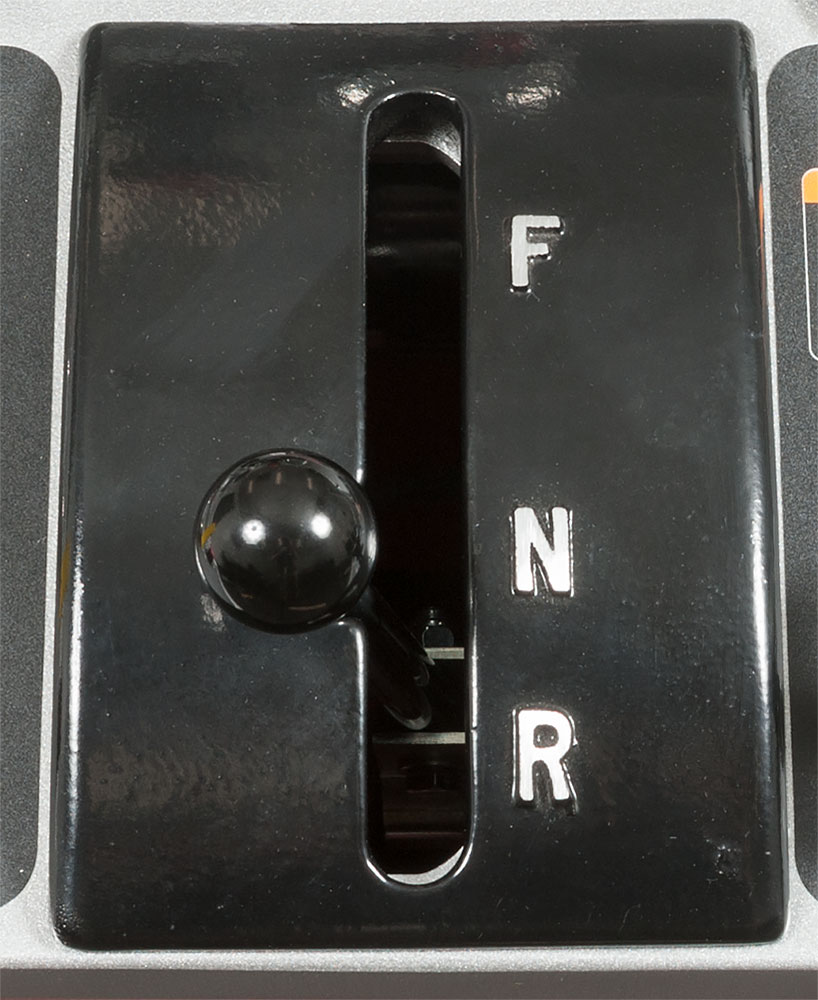

Ergonomic FNR traverse control
for ease of operation.

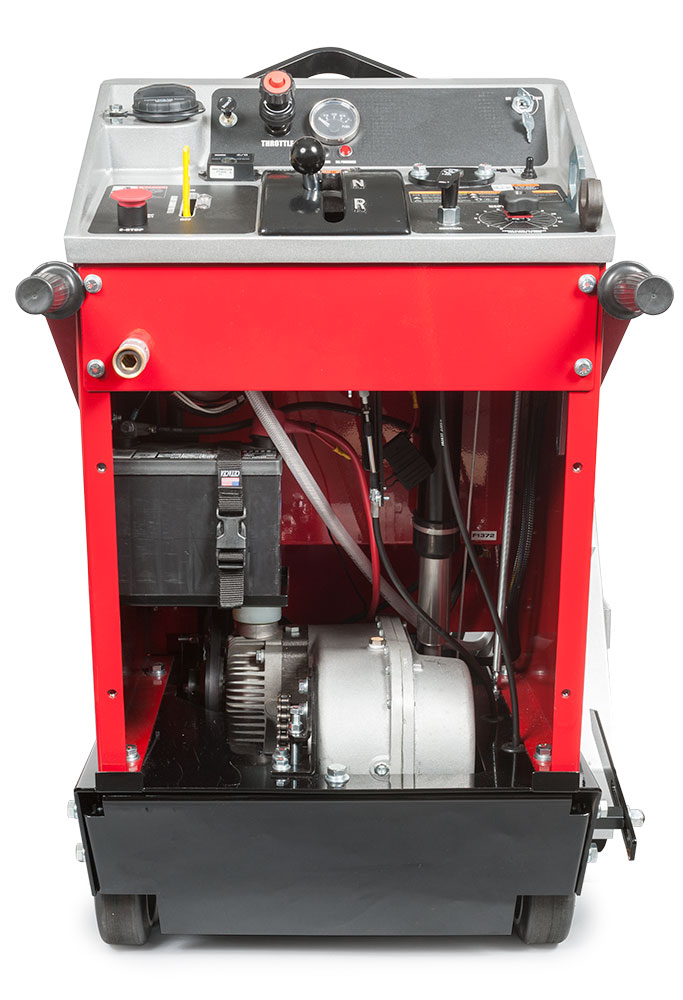

Removable rear panel for easy service.
1-7/16 blade shaft with heavyduty
pillow block bearings.

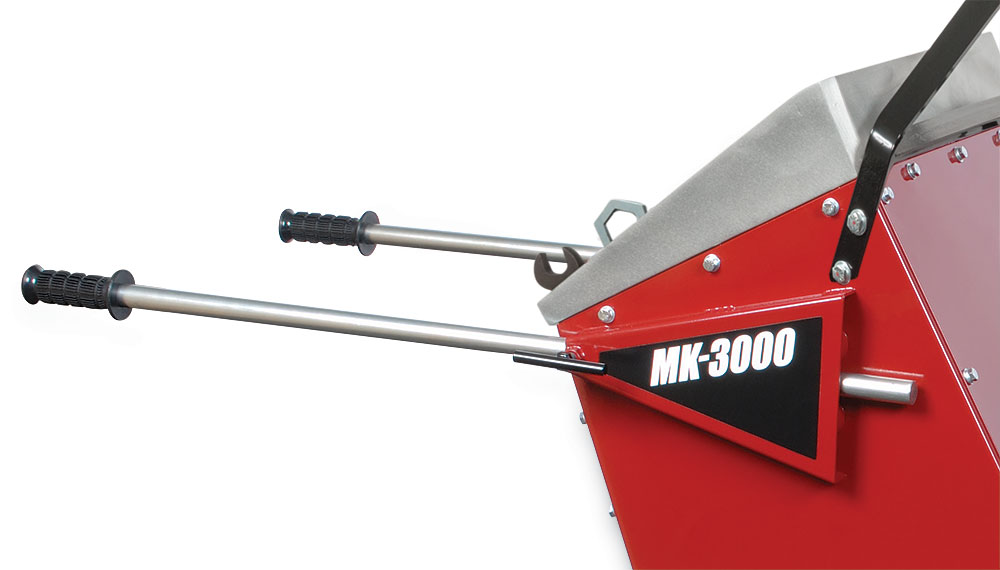

Three-position adjustable solid steel handlebars.

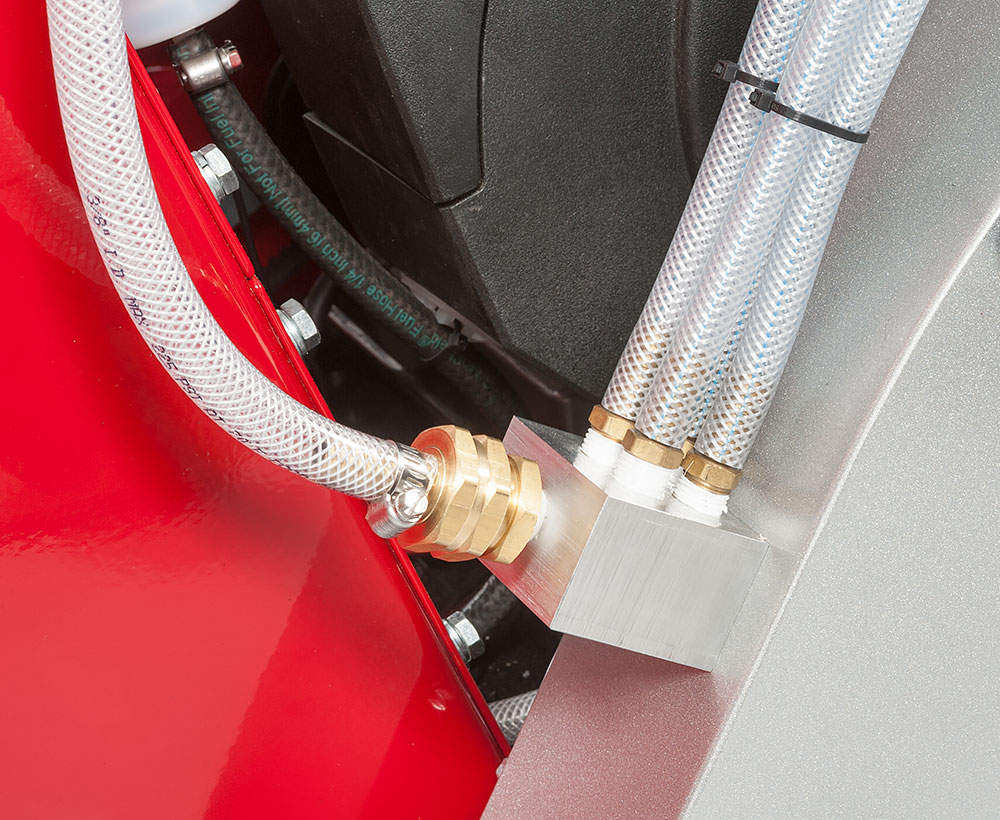

Blade guard has garden hose style
connector for quick disconnecting.

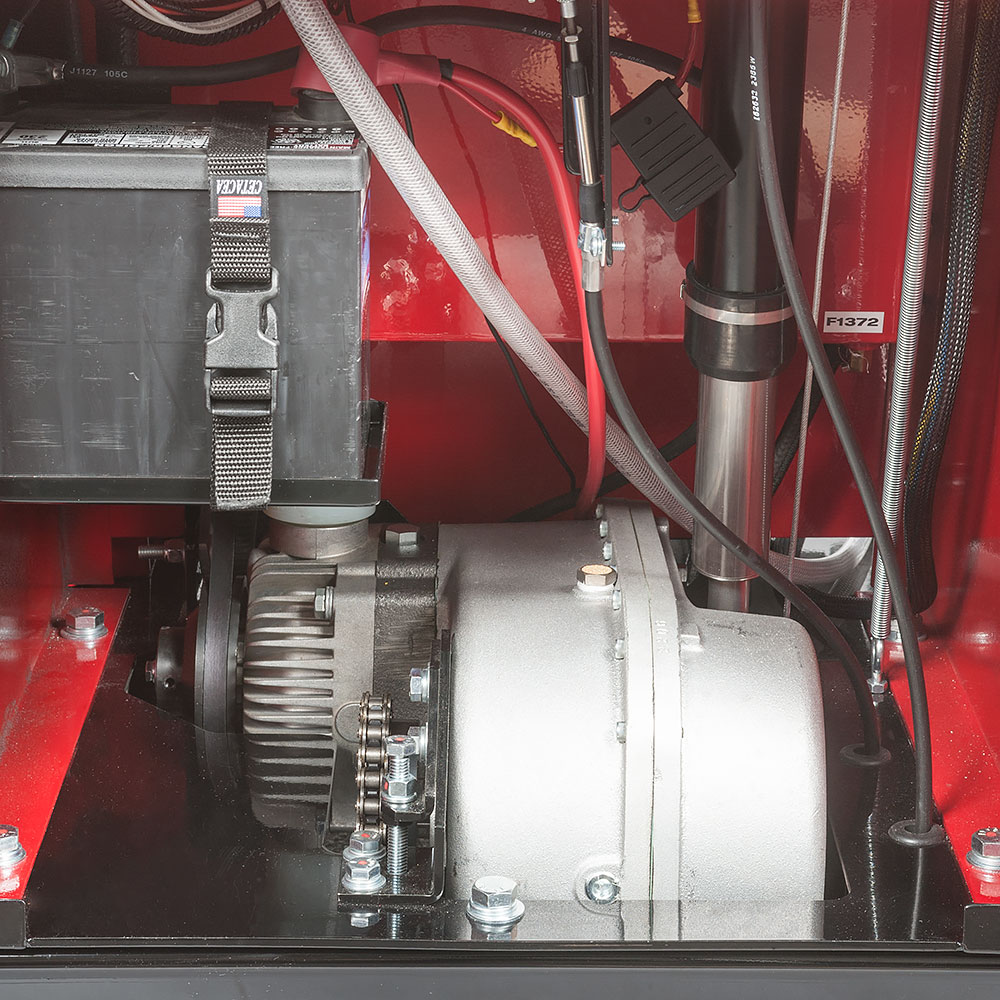

Eaton model 6 hydrostatic transmission
coupled to an MK trans-axle.

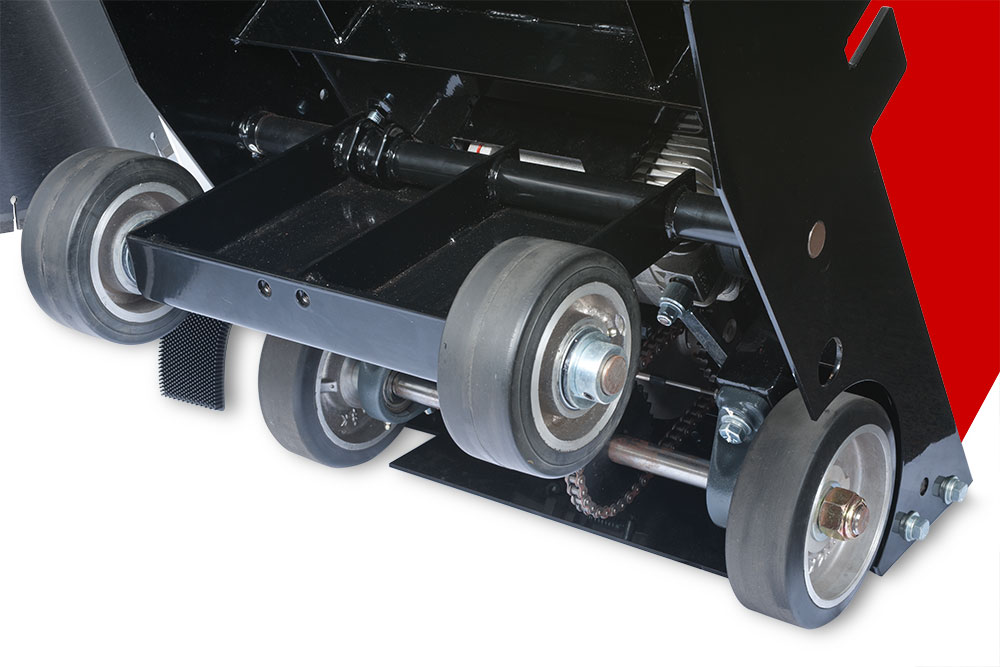

Wide front wheel base increases
stability and allows ramp loading/
unloading.
