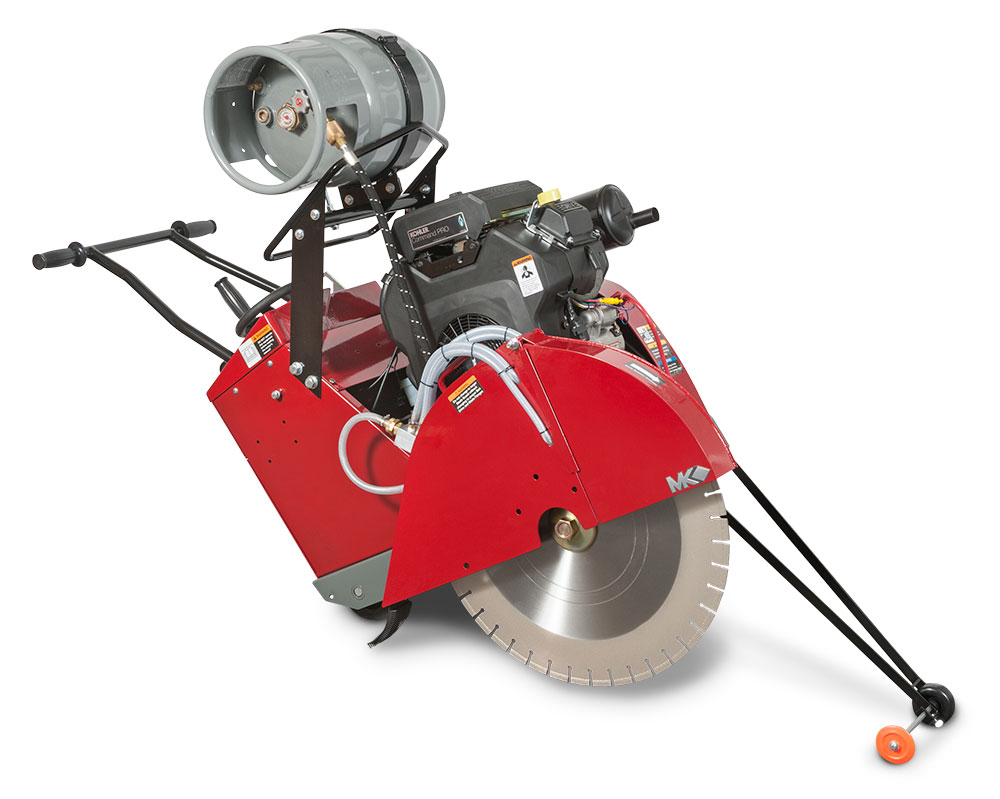

MK-2425KSP Self-Propelled Propane Concrete Saw


MK-24 Propane saw is one of the lightest, mid-size self-propelled concrete saws available. Key to the design is the featured box frame and channel that produces a rigid frame, which helps reduce sawing-induced vibrations. Engine weight is evenly distributed over the blade shaft for added stability and tracking. Depth control assembly is engineered for smooth, controlled blade insertion. One-year limited warranty.

MK-24 Series Features:

  • Open loop propane system and a 5 gallon (20lb.) propane bottle.
  • One-piece box construction chassis made from 3/16" hot-rolled steel will not flex during operation
  • Powder-coated chassis resists peeling & corrosion

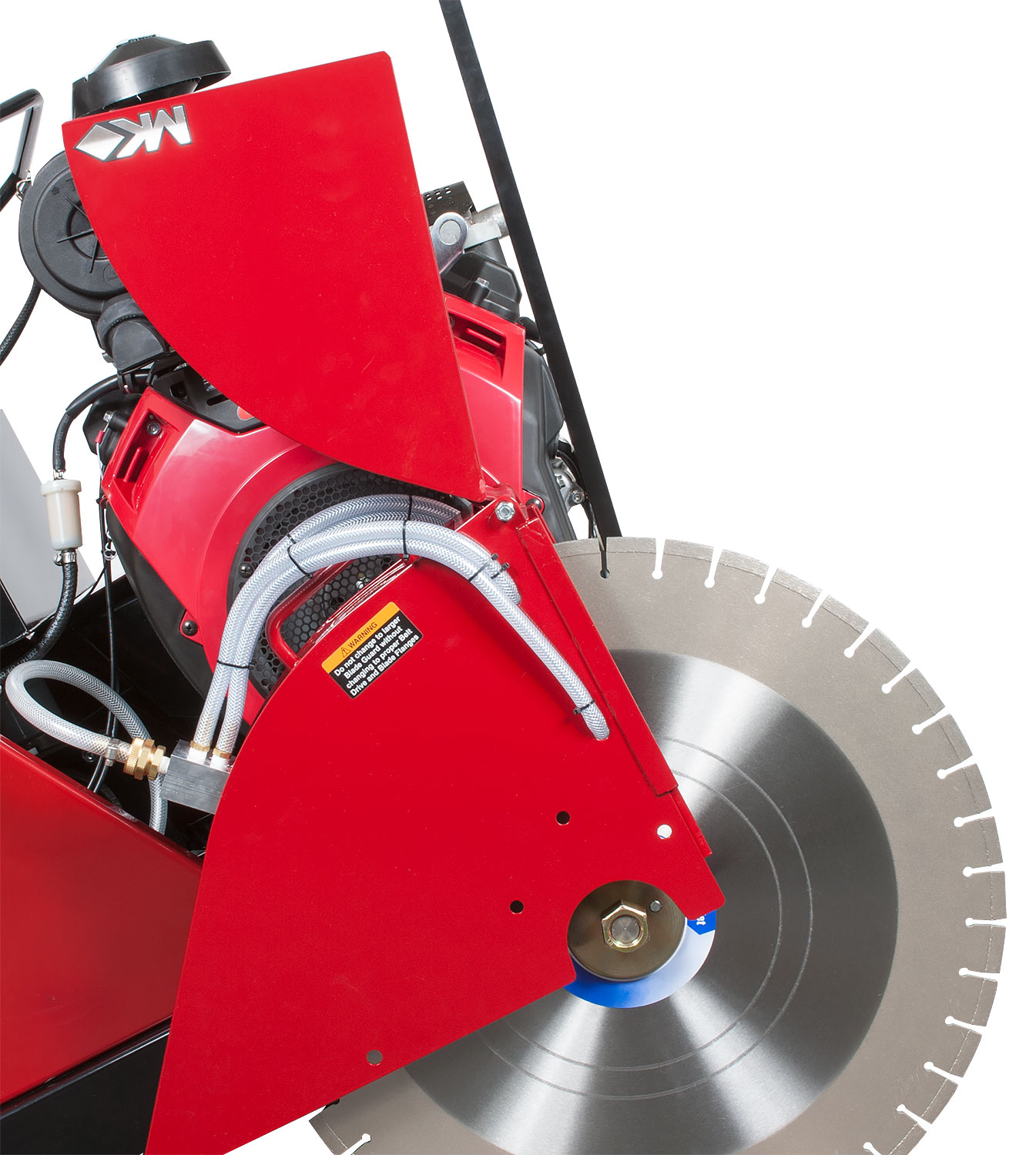

  • 12-gauge steel hinged blade guard

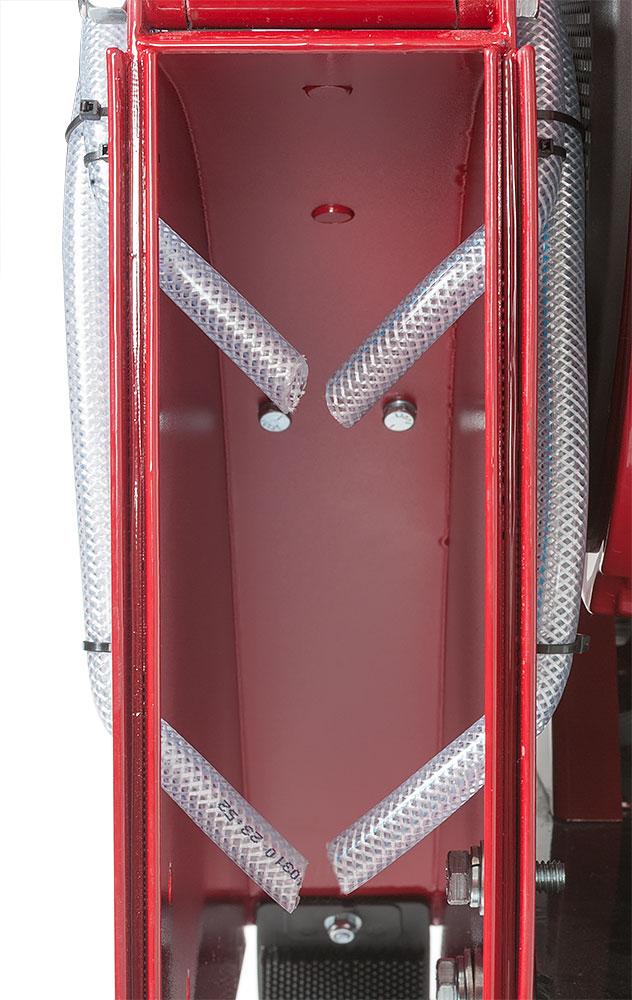

  • Ride-on-the-blade water distribution system supplies water to both sides of blade
  • Blade guard mounts on both left- or right-hand side of saw and cuts within 2" of wall or curb

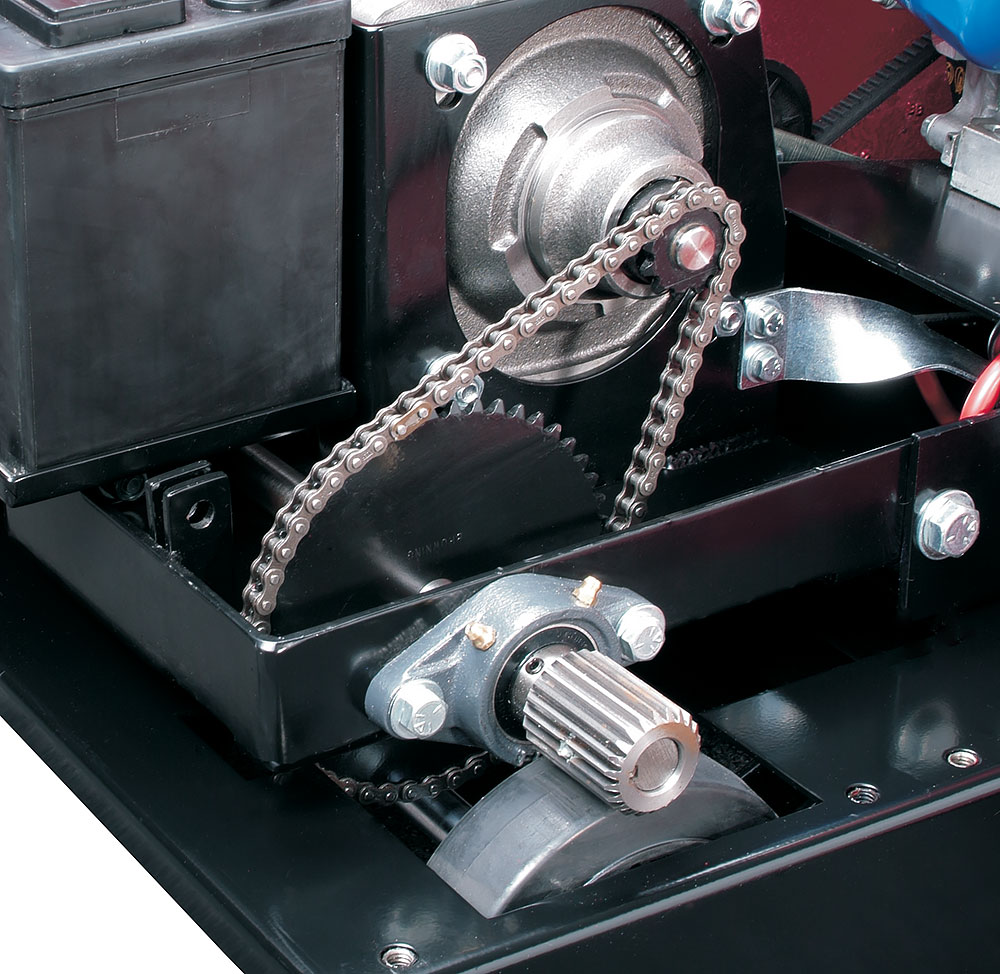

  • 1-3/16" blade shaft supported by two heavy-duty, self-aligning pillow block bearings
  • Depth control assembly engineered for smooth, controlled blade insertion

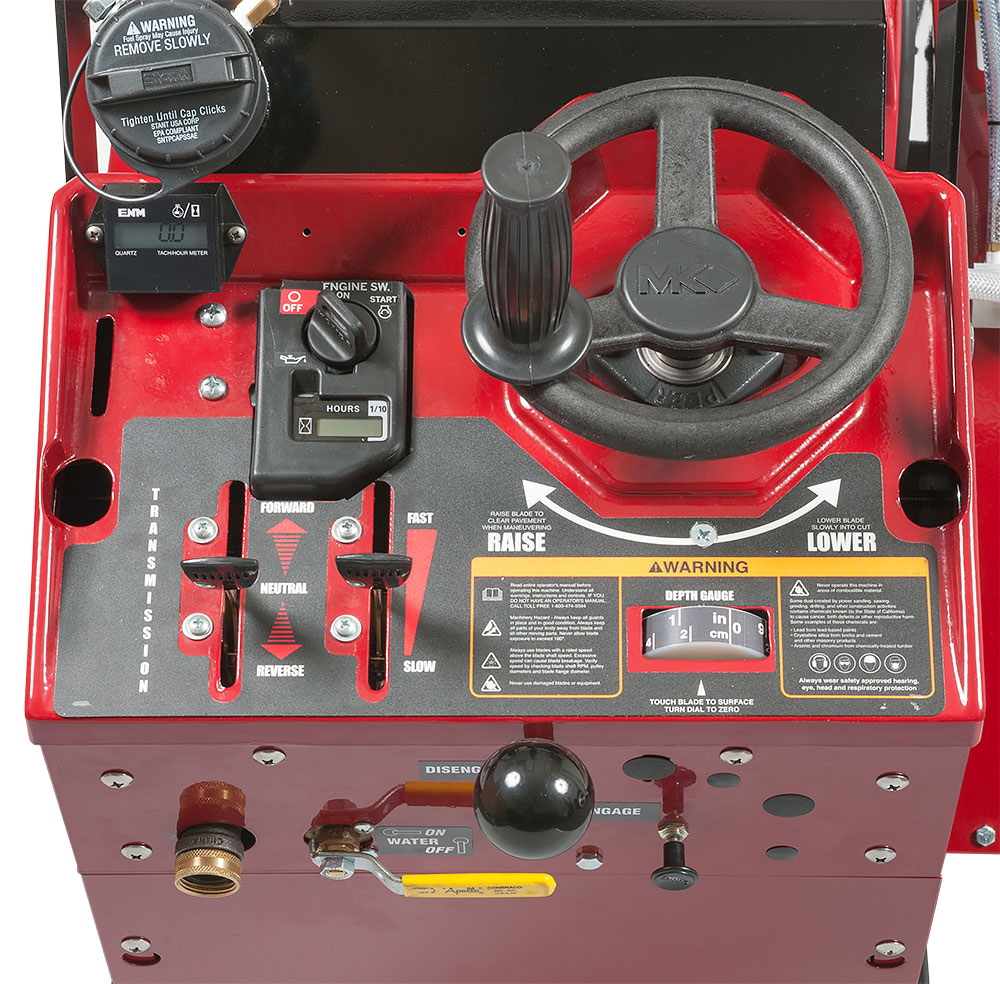

  • Built-in tach/hour meter
  • Depth feed gauge indicator
  • Heavy-duty hydro static transmission with variable speed drive
  • Durable 8" x 2 1/4" non-slip rubber wheels with maintenance-free hubs & roller bearing
  • Forward and reverse travel speed: 0-80'/minute
Part # 170957
Engine Kohler EH72LP
Arbor Size 1" (25mm)
Blade Capacity 24" (610mm)
Depth of Cut 9-5/8"
Blade RPM 2,100
Starter Electric
Fuel Capacity 5 gallons
LxWxH (inches) 49" x 25" x 45"
LxWxH (mm) 1,245 x 635 x 1,143
Weight 425 lbs

Blade not included with saw.

* Engine power ratings are calculated by the individual engine manufacturer and the rating method may vary among engine manufacturers. MK Diamond Products makes no claim, representation or warranty as to the power rating of the engine on this equipment and disclaims any responsibility or liability of any kind whatsoever with respect to the accuracy or the engine power rating. Users are advised to consult the engine manufacturer’s owners manual and website for specific information regarding the engine power rating.
Click on thumbnails for enlarged images.
Accessories Included with the MK-2425KSP
Lifting Bail

5 Gallon Tank

Recommended Blades
Cured Concrete MK-505

Asphalt over Concrete MK-615W

Asphalt MK-710W
